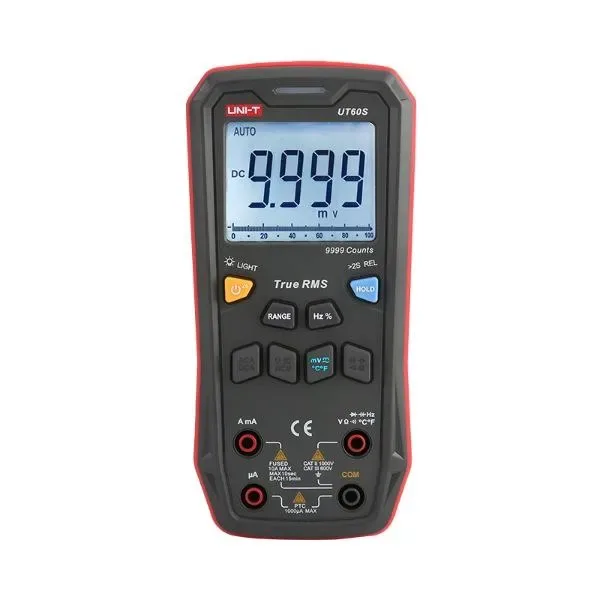

Unit-T Dijital Ölçü Aleti / UT 60S

Özellikler

ARALIK

UT60EU

UT60BT

UT60S

AC Voltaj (V)

9.999mV/99.99mV/999.9mV/

9.999V/99.99V/999.9V

±(0.8%+3)

±(0.8%+3)

±(0.8%+3)

DC Voltaj (V)

9.999mV/99.99mV/999.9mV/

9.999V/99.99V/999.9V

±(0.5%+3)

±(0.5%+3)

±(0.5%+3)

AC Akım (A)

999.9uA/999.9mA/9.999A/10A

±(1.0%+3)

±(1.0%+3)

±(1.0%+3)

DC Akım (A)

999.9uA/999.9mA/9.999A/10A

±(0.8%+3)

±(0.8%+3)

±(0.8%+3)

Direnç (Ω)

999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ

9.999MΩ/99.99MΩ

±(0.8%+2)

±(0.8%+2)

±(0.8%+2)

Kapasite (F)

9.999nF/99.99nF/999.9nF/9.999μF/99.99μF

999.9μF/9.999mF/9.99mF/99.9mF

±(4.0%+5)

±(4.0%+5)

±(4.0%+5)

Frekans (Hz)

99.99Hz～9.999MHz

±(0.1%+5)

±(0.1%+5)

±(0.1%+5)

Görev Döngüsü

0.1～99.9%

±(3%+5)

±(3%+5)

±(3%+5)

Sıcaklık

–40℃～1000℃

±4℃

±4℃

±4℃

Özellikler

Bluetooth

√

Ekran Sayısı

9999

9999

9999

Oto Aralık

√

√

√

Göreli Mod

√

√

√

NCV

√

√

√

Diyot

√

√

√

Devamlılık Testi

√

√

√

Akustik-Optik gösterge

NCV/Devamlılık/Pil Gücü

√

√

√

Düşük Pil uyarısı

≤3.6V

√

√

√

Veri Tutma

√

√

√

Oto Kapanma

15 Dakika

√

√

√
